Universal Ventilated Façade System in Mallorca

VENTILATED FAÇADE CLADDING WITH PIR INSULATION

Universal ventilated façade build-up with five numbered callouts identifying the masonry wall, PIR insulation, substructure, ventilated cavity and exterior cladding. 1 2 3 4 5
1. Existing masonry wall; 2. PIR insulation layer; 3. Timber or aluminium substructure; 4. Ventilated cavity; 5. Exterior façade cladding

WHY ECOVIVA

  • Independent renovation guidance
  • Local Mallorca expertise
  • Project-specific technical verification
  • One point of contact from concept to completion

FIVE-PART UNIVERSAL VENTILATED FAÇADE BUILD-UP

  1. 1

    Existing masonry wall

    Prepared masonry or structural wall supporting the façade system.

  2. 2

    PIR insulation layer

    Continuous rigid insulation improving the external thermal envelope.

  3. 3

    Timber or aluminium substructure

    Rails transfer façade loads and establish the required cavity depth.

  4. 4

    Ventilated cavity

    Open drainage and airflow space behind the exterior finish.

  5. 5

    Exterior façade cladding

    Durable outer finish defining the architectural appearance.

KEY TECHNICAL PRINCIPLES

CONTINUOUS EXTERNAL INSULATION

Install PIR continuously outside the wall to limit thermal bridging.

VENTILATED CAVITY

Maintain a continuous cavity for upward airflow and safe drainage.

PROJECT-SPECIFIC SUBSTRUCTURE

Select material, spacing and anchors for the cladding, wind and substrate.

CONTROLLED OPENINGS

Protect base and top openings while maintaining sufficient free area.

MATERIAL-SPECIFIC FIXING

Coordinate fixings, joints and support spacing with the selected system.

FIRE AND WIND VERIFICATION

Verify cavity barriers, fixing resistance and wind-load performance.

EXAMPLES OF COMPONENTS USED IN THE SYSTEM

Components are selected for the façade material, panel format, building height, exposure and project requirements.

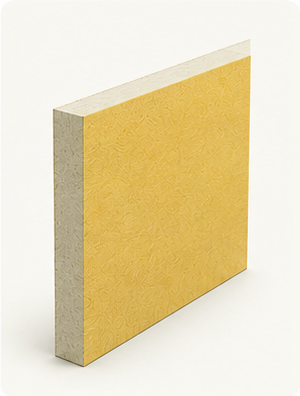

  1. PIR insulation board
    1. PIR insulation board Continuous rigid thermal insulation.

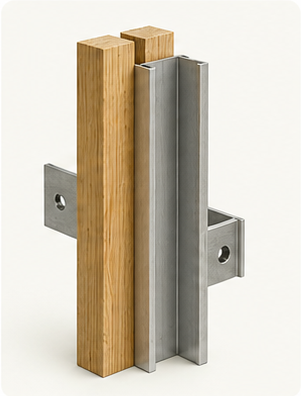

  2. Timber or aluminium substructure
    2. Timber or aluminium substructure Load-bearing rails forming the cavity.

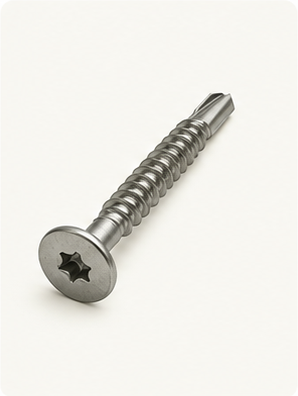

  3. Façade fixing screw or rivet
    3. Façade fixing screw or rivet Corrosion-resistant exterior fixing.

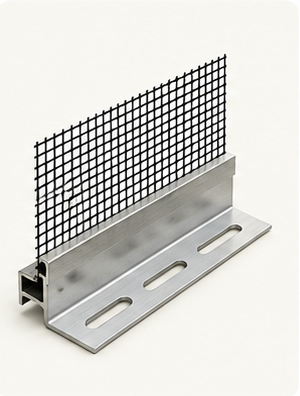

  4. Ventilation profile with insect mesh
    4. Ventilation profile with insect mesh Protects cavity openings while preserving airflow.

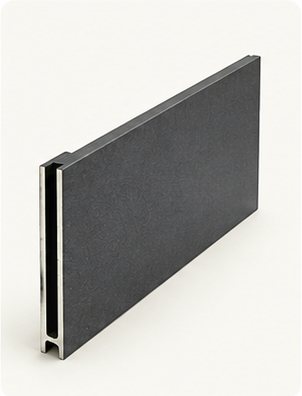

  5. Façade panel joint profile
    5. Façade panel joint profile Supports clean and controlled panel joints.

FAÇADE MATERIAL OPTIONS

Six durable façade finishes illustrate the architectural flexibility of the ventilated system.

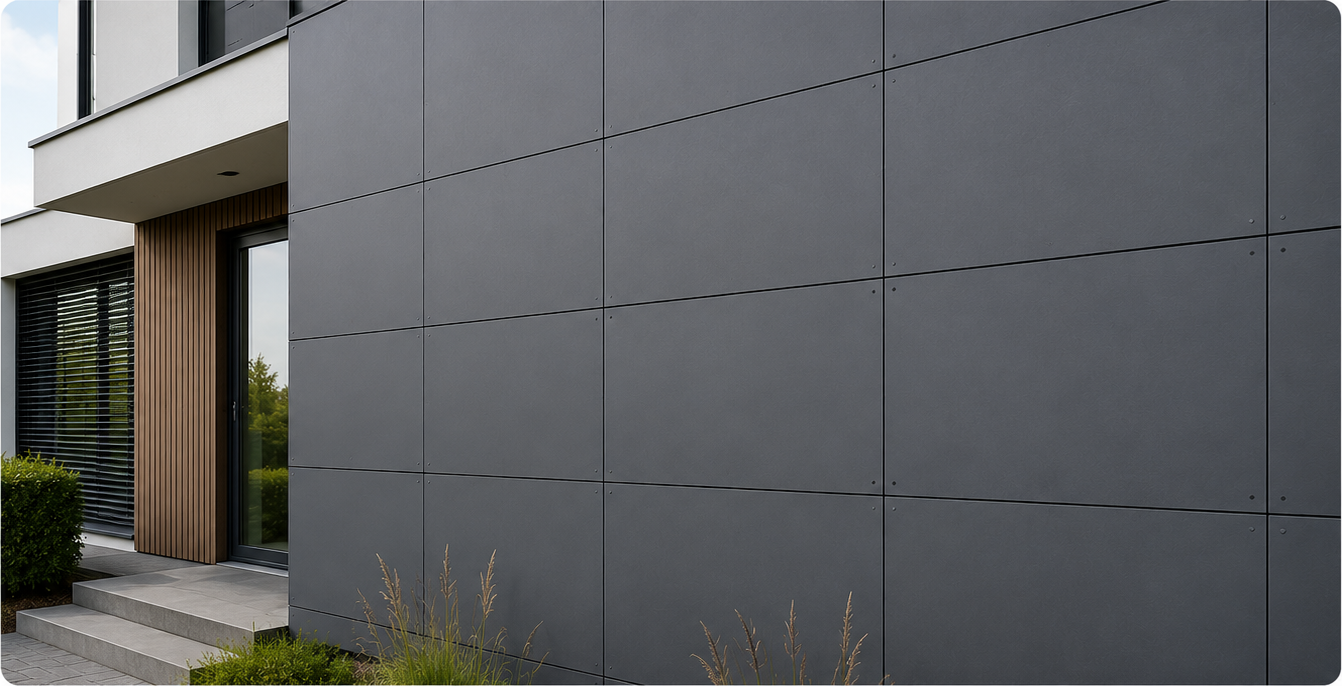

ROCKPANEL® PANELS

ROCKPANEL® PANELS

Stone-wool façade panels combining design flexibility, durability and low maintenance.

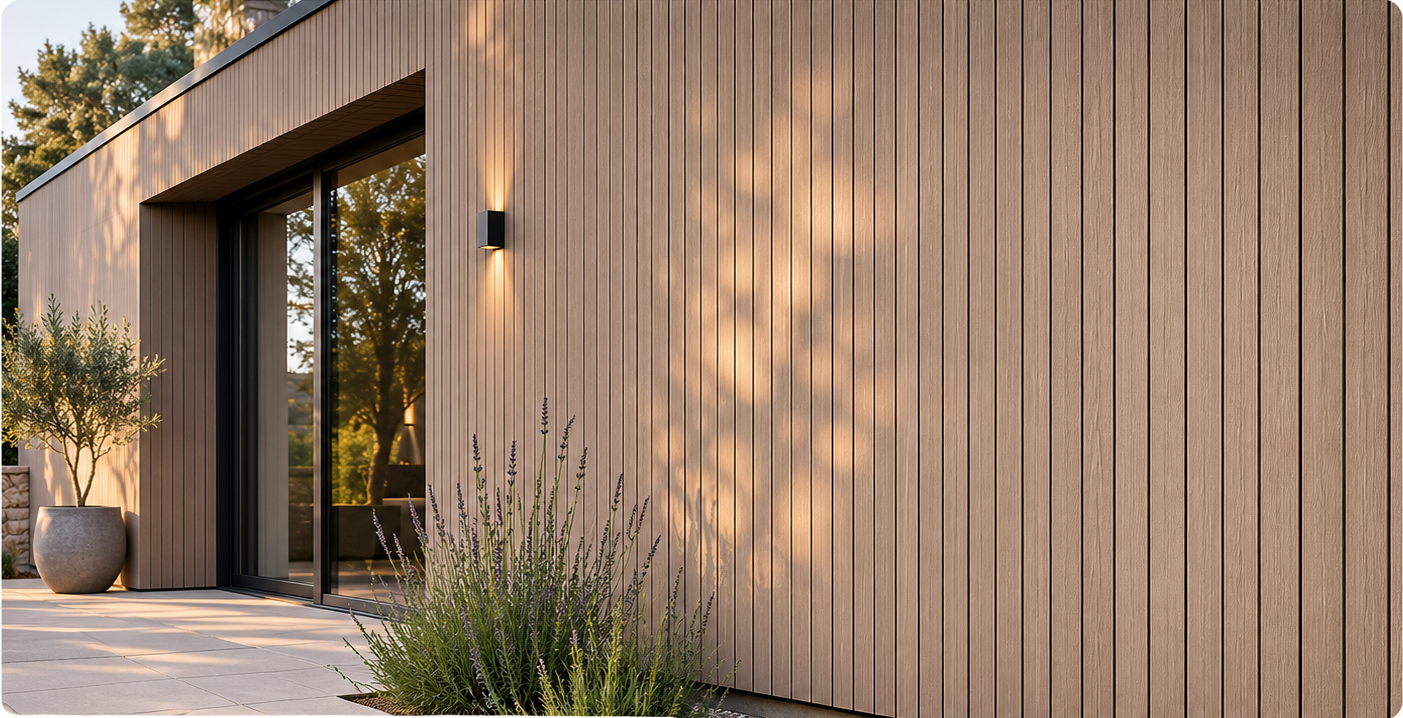

FIBRE CEMENT SIDING BOARDS

FIBRE CEMENT SIDING BOARDS

Durable boards with a refined linear appearance and strong weather resistance.

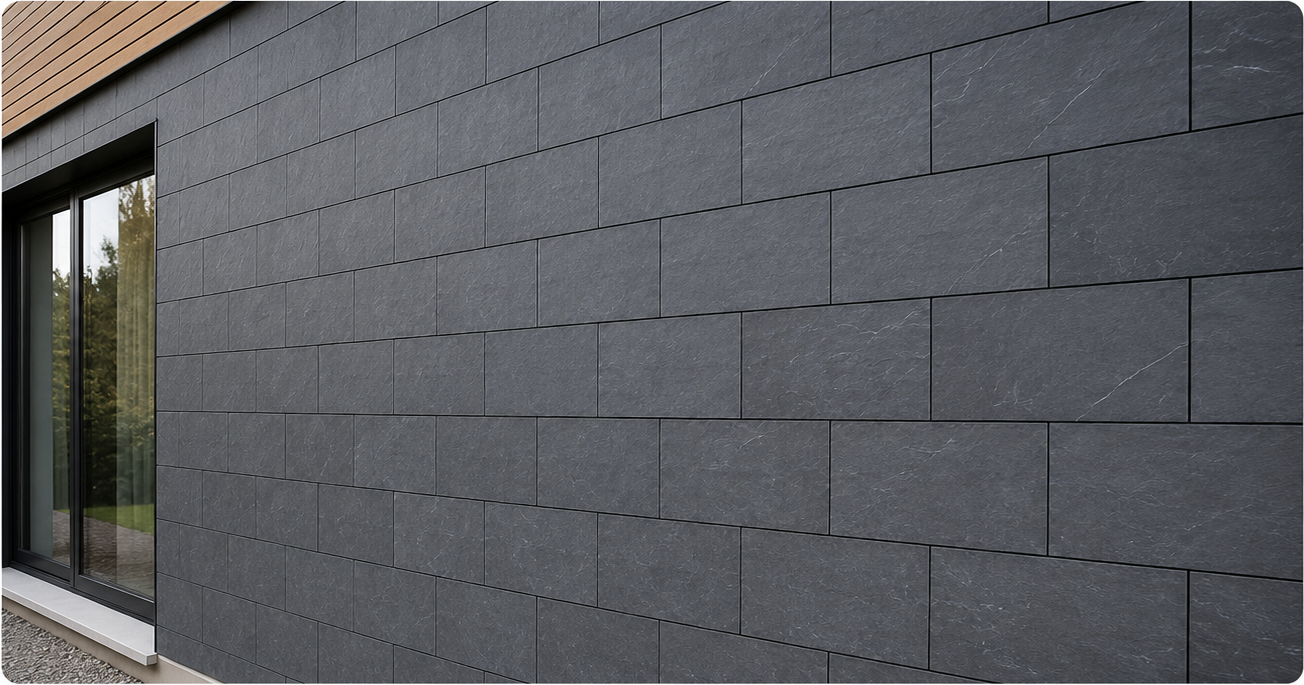

NATURAL SLATE

NATURAL SLATE

Authentic, durable and non-combustible slate with distinctive overlapping patterns.

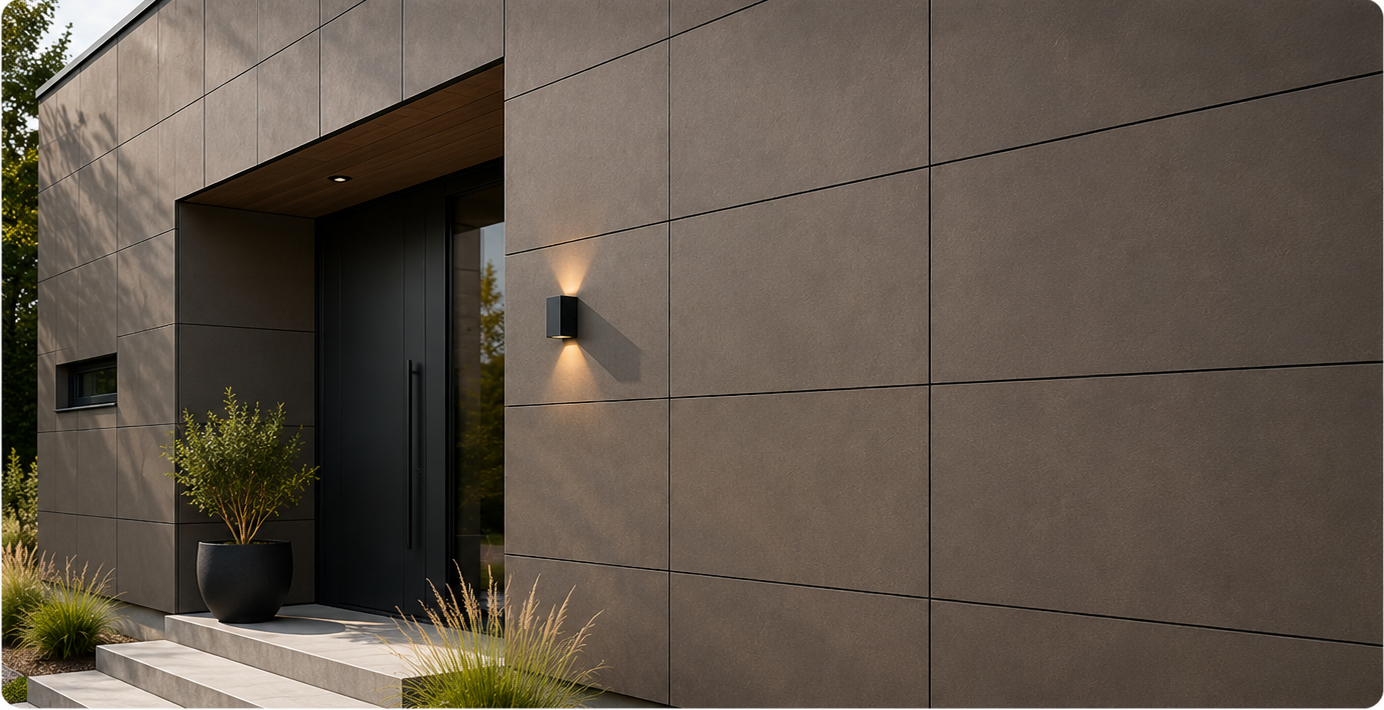

HPL FAÇADE PANELS

HPL FAÇADE PANELS

Durable laminate panels available in varied colours, textures and finishes.

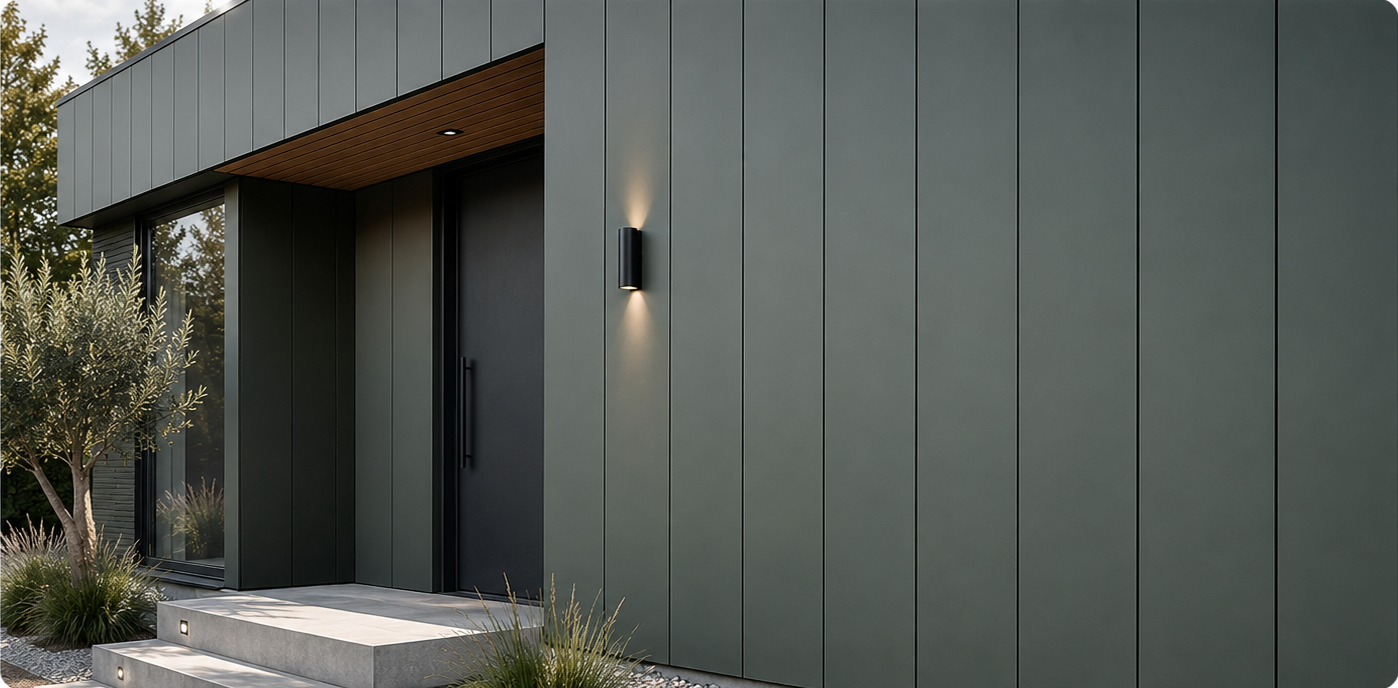

ALUMINIUM FAÇADE SYSTEMS

ALUMINIUM FAÇADE SYSTEMS

Lightweight, recyclable cladding with precise joints and low maintenance.

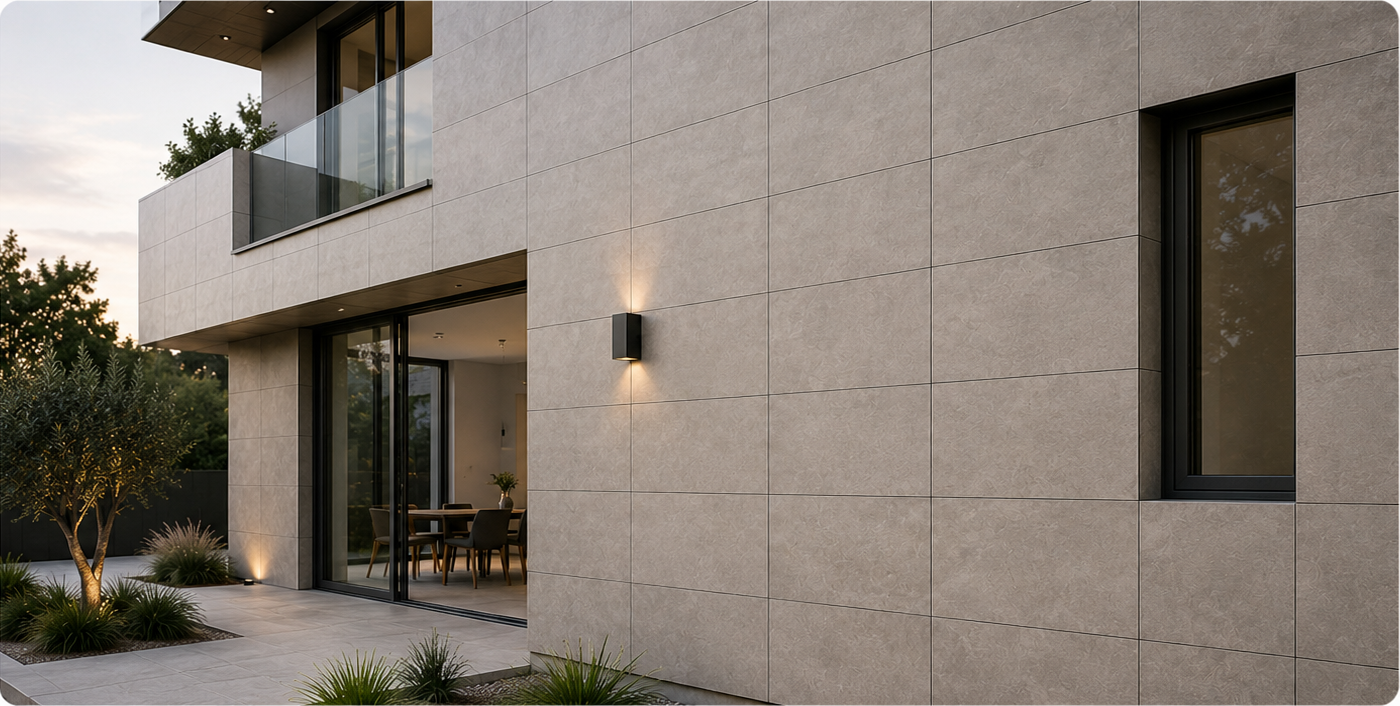

PORCELAIN FAÇADE TILES

PORCELAIN FAÇADE TILES

Large-format tiles offering durable, stain-resistant and weather-resistant finishes.

KEY BENEFITS

  • High thermal performance
  • Reduced thermal bridging
  • Controlled drainage and ventilation
  • Wide choice of façade materials
  • Durable weather protection
  • Flexible architectural design
  • Replaceable exterior components
  • Suitable for renovation and new construction

TYPICAL APPLICATIONS

  • Renovation of masonry façades
  • Energy upgrades of villas
  • Contemporary residential extensions
  • Apartment and multi-residential buildings
  • Commercial and hospitality façades
  • New-build ventilated envelopes

MATERIAL APPEARANCE AND AGEING

Appearance depends on material, finish and exposure. Manufactured panels may remain uniform, while natural slate varies in tone and texture. Confirm colour stability, cleaning, joints and weathering for the selected product.
